Blind Motor

JCV40 Electric Blind Motor

Application

Sheer Blinds

Sheer Blinds

Honeycomb blinds

Honeycomb blinds

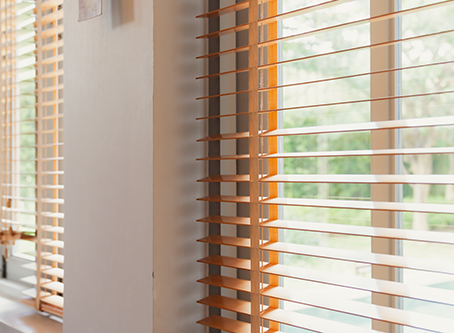

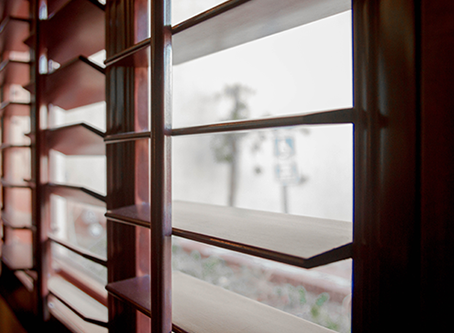

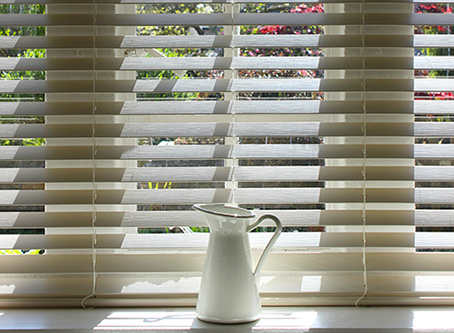

Wooden Venetian blinds

Wooden Venetian blinds

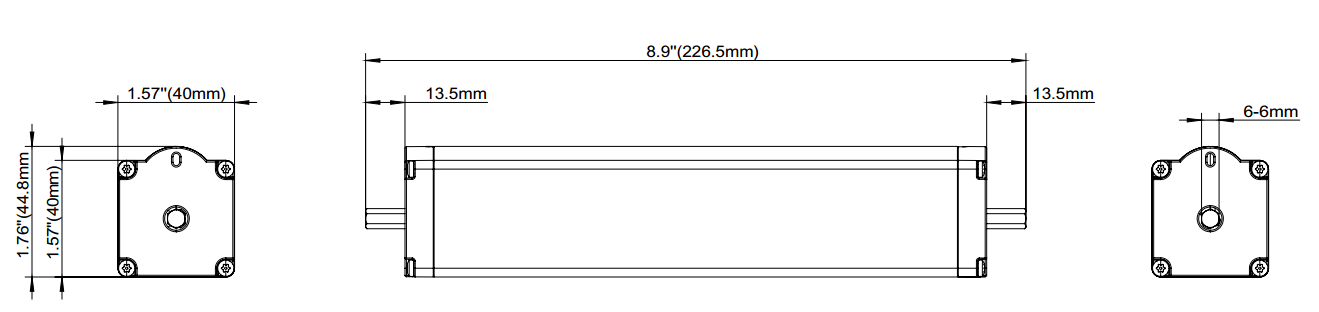

Dimension Drawing

*Click for larger drawings

Product

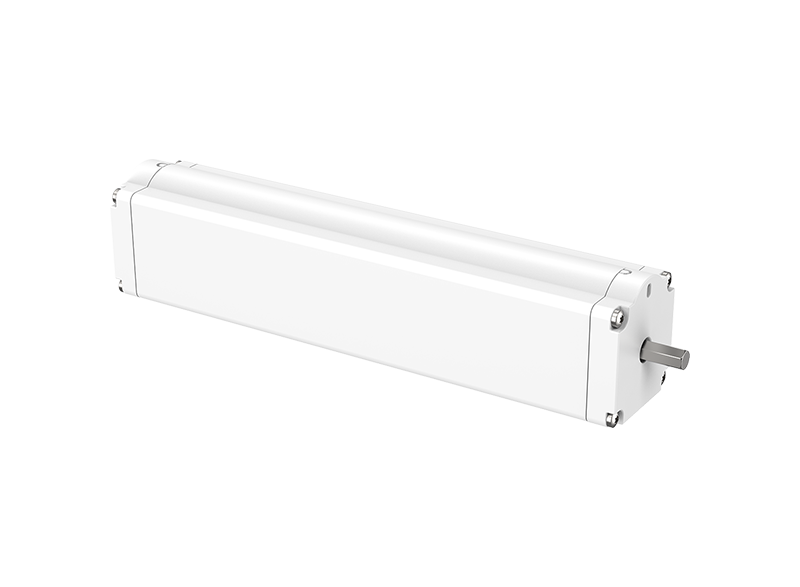

  • JCV40SAED Electric Blind Motor
  • JCV40SAED Electric Blind Motor uses high-performance magent components and herringbone gearboxes, safe and reliable
Features
  • 1. Dual-shaft output, smooth and reliable
  • 2. External WiFi module for smart phone App and smart speaker voice control
  • 3. Jog mode for tilt
  • 4. Built-in RF receiver, electronic limit
  • 5. Special planetary reduction design, larger operating torque
  • 6. Special noise reduction design, operating noise <= 31dB
  • 7. Stall protection
  • 8. 3-speed adjustable
  • 9. Easy operation of upper and lower limits and best position setting
Control
W1/W2/W3/W5 series Emitter
Power supply

Accessories(optional)

JV10 Bracket

JV10 Bracket

JV11 Adapter

JV11 Adapter

Product Features

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the Electric Blind Motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB

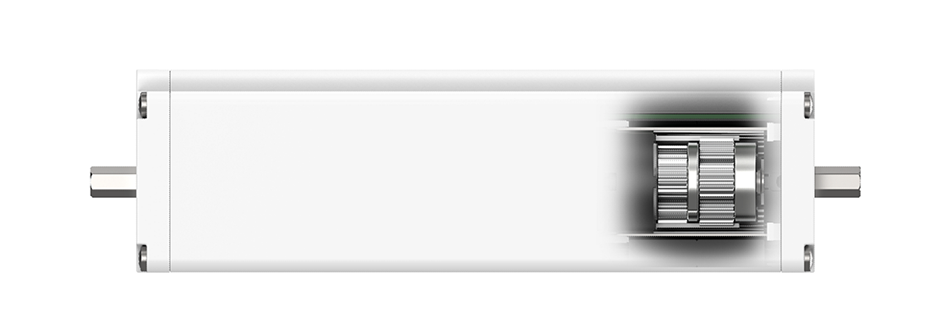

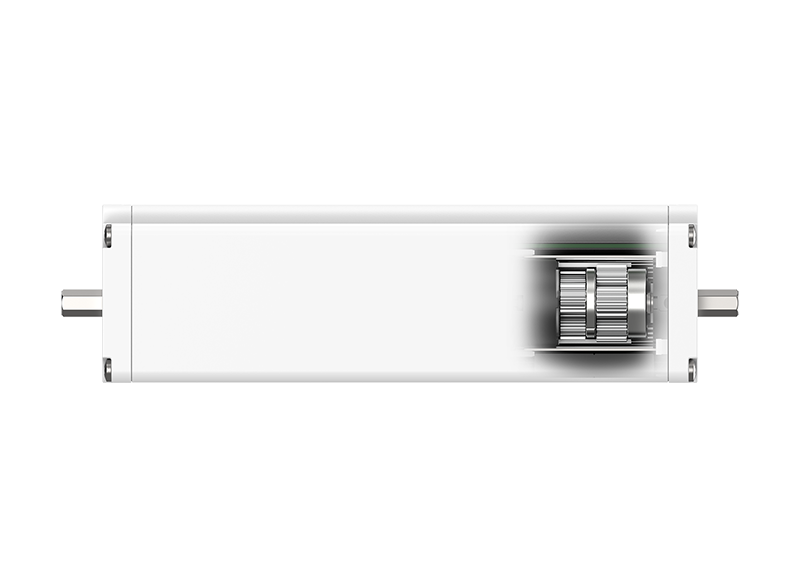

    Robust brakes: Motor uses high-performance magent components and herringbone gearboxes, safe and reliable

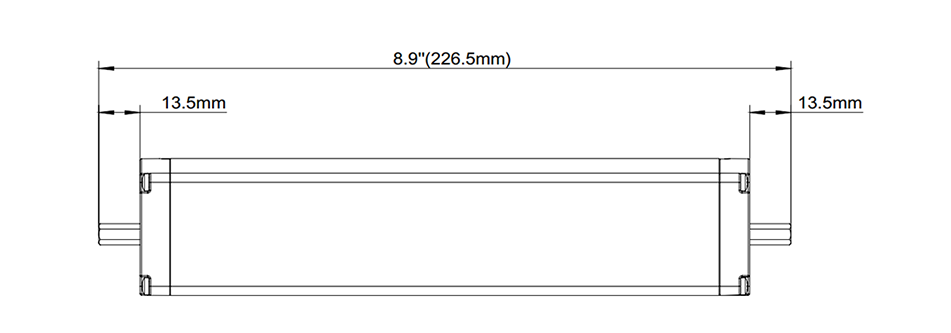

  • More than 20% shorter

    Being more than 20% shorter than comparable goods on the market today, the JCV40 series blinds motor is likely the shortest motor available and can be used on windows that are smaller.
More Details

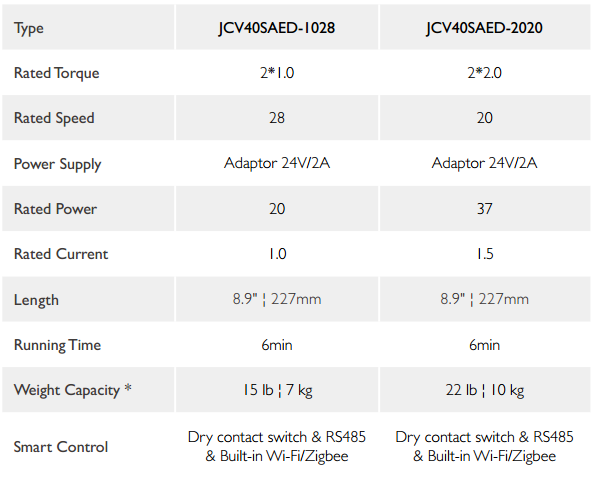

Product Parameter
