Blind Motor

JCV30 Motorized Blinds

Application

Aluminum Venetian blinds

Aluminum Venetian blinds

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

Awning

Awning

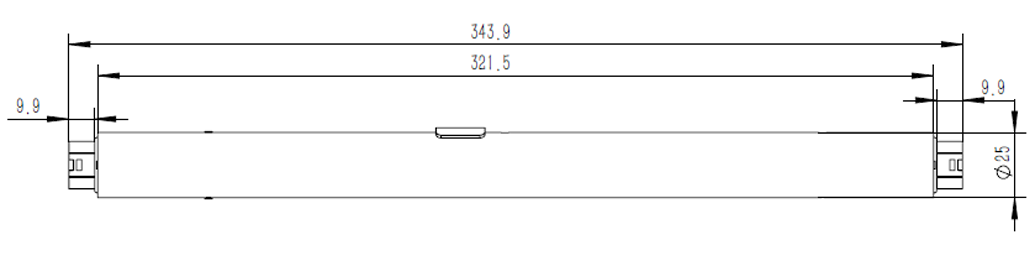

Dimension Drawing

*Click for larger drawings

Product
  • JCV30SAED Motorized Blinds
  • JCV30SAED Motorized Blinds Unique noise reduction design ensures quiet and smooth operation of the motor, bringing users excellent and sustainable acoustic comfort, motor operating noise <=31dB
Features
  • 1. Dual-shaft output, smooth and reliable
  • 2. External WiFi module for smart phone App and smart speaker voice control
  • 3. Jog mode for tilt
  • 4. Built-in RF receiver, electronic limit
  • 5. Special planetary reduction design, larger operating torque
  • 6. Special noise reduction design, operating noise <= 31dB
  • 7. Stall protection
  • 8. 3-speed adjustable
  • 9. Low consumption and standby function
Control
W1/W2/W3/W5 series Emitter
Power supply

Product Features

  • Quiet design

    Unique noise reduction design ensures quiet and smooth operation of the motor, bringing users excellent and sustainable acoustic comfort, motor operating noise <=31dB

  • Steady braking

    Unique reduction gear design, safe and reliable
More Details

Data Download

Product Parameter

Blind Motor Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCV30SAED-0630 2*0.6 20/30/40 12 2 24 433 Adapter12V/3A 0.42 344 IP20
Related Products
JCV24SAED 0.8 20/30/40 12 0.8 9.6 433 Adapter12V/1A 0.28 208 IP20
JCV24SAEW 0.8 20/30/40 12 0.8 9.6 433+WiFi Adapter12V/1A 0.28 208 IP20
JCV24SAES 0.6 20/30/40 12 0.8 9.6 433 Adapter12V/1A 0.20 143 IP20
