Curtain Motor

JCC60-Series

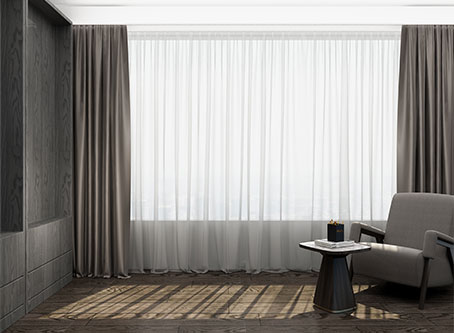

Application

Curtain

Curtain

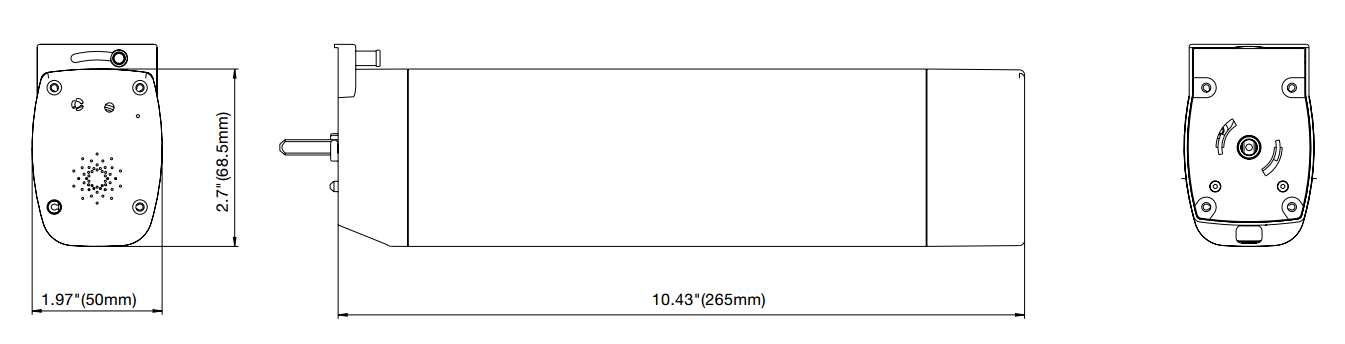

Dimension Drawing

*Click for larger drawings

Product

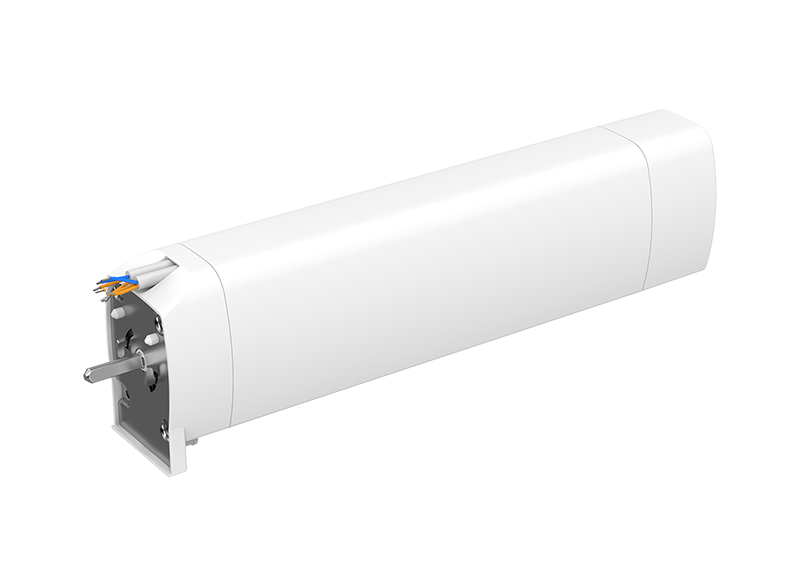

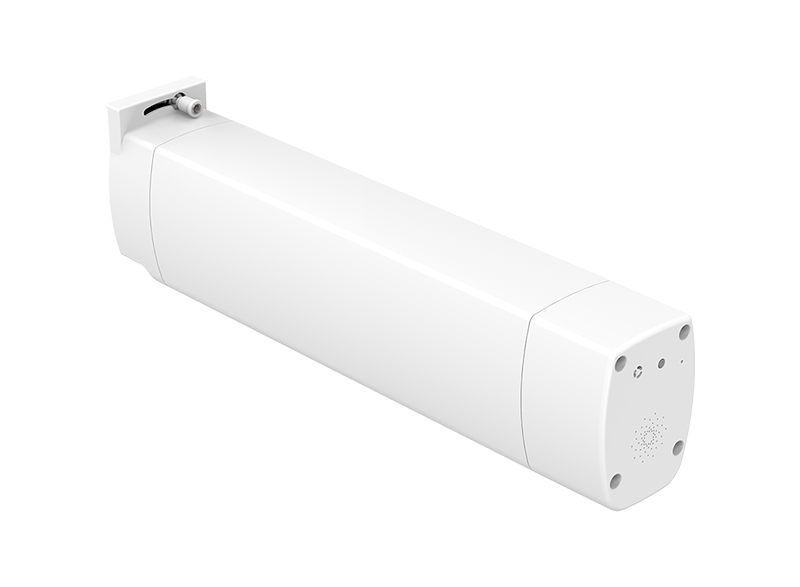

  • JCC60STE
  • Curtain motor - wide voltage power supply
Features
  • 1. Stop/run by pulling fabric, manual operation available when power failure;
  • 2. Soft start/Soft stop;
  • 3. Auto limit setting,Preferred Stop Position;
  • 4. Special NVH design, operation noise <33dBA;
  • 5. Stall Pretection;
  • 6. Speed adjustable;
  • 7. High torque motor, rate loading 50Kgs;
  • 8. 360° Hall sensor scan, accurate positioning;
  • 9. Wide voltage supply AC110~230V;
Control
W1/W2/W3/W5 series Emitter
Power supply

Product Features

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB

  • High sensitivity Hall scan

    Hand pull start distance less than or equal to 3cm
More Details

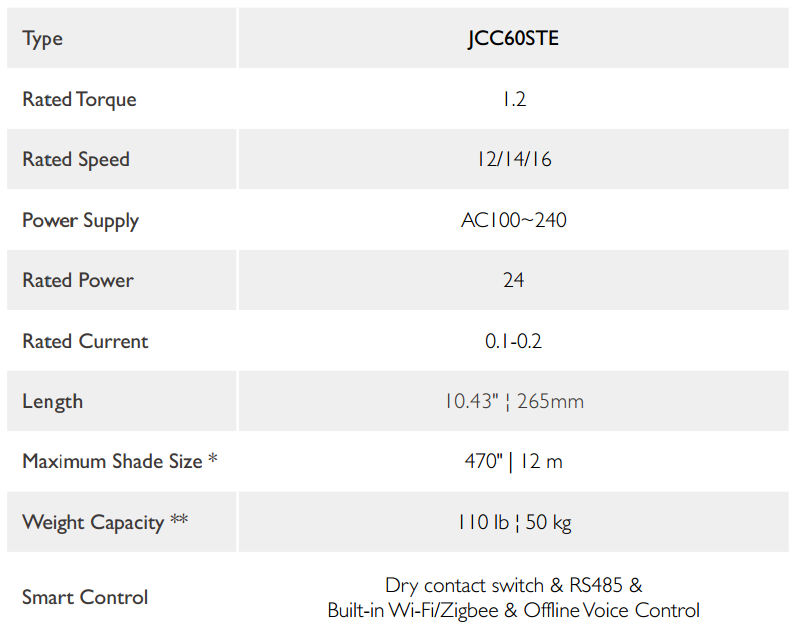

Product Parameter
